Features:
● Suitable for BOPS, PET, PS, PVC, PLA plastic sheet;
● Two heating system: one for BOPS, one for PET;
● Two working modes:1-positive pressure; 2-positive & negative pressure;
● Independent stretching system;
● Full servo driven system;
● Without chain feeding, high utilization rate of sheets to 85%;
● Low mould cost and low power consumption about 15-25 kw/h.
Specifications

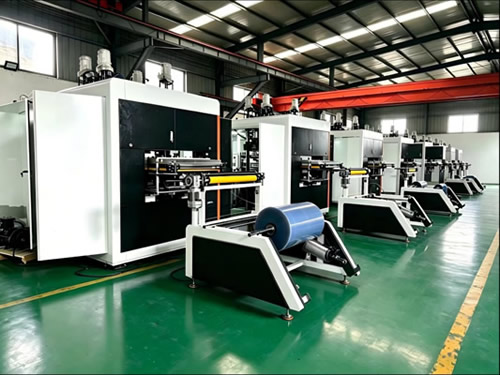

Machine Introduction
Packaging and Shipping
● Suitable for BOPS, PET, PS, PVC, PLA plastic sheet;
● Two heating system: one for BOPS, one for PET;
● Two working modes:1-positive pressure; 2-positive & negative pressure;
● Independent stretching system;
● Full servo driven system;
● Without chain feeding, high utilization rate of sheets to 85%;
● Low mould cost and low power consumption about 15-25 kw/h.
Specifications
| Model | HY-7080 | |
| Max Forming Area | 700*800mm | |
| Max Forming Depth | Male die: 80mm Female die:120mm |
|
| Sheet Thickness Range | 0.1-0.7mm | |
| Production Speed | 600-1500 cycles/hr | |
| Clamping force | 70Ton | |
| Heating Power | A zone 32KW, B zone 24kw | |
| Motor Power | 37 KW | |
| Air Pressure | 0.7Mpa | |
| Air Consumption | 3000 Liters/min | |
| Water Consumption | 50 Liters/min | |
| Power Supply | AC 380±15V, 50/60HZ | |
| Max. Sheet Roll Diameter | 1000mm | |
| Weight | 11500 Kg | |
| Dimension（mm） | Main Machine | 7670*1705*2860 |
| Feeder | 1440*1323*1306 | |
Machine Introduction
 Feeding part 1) Max. feed roll diameter of 1000mm; 2) Feeding roll weight around 200-300kg/roll; |
 Heating Part A 1)As shown in the figure, this is the external heating part of our equipment, it’s mainly for PET material products; 2)Heating boards with integrated heating rods for fast, continuous heating; |
 Heating Part B 1)As shown in the figure, this is the in-mould heating part of our equipment,its mainly use for BOPS material products. we call it heat-contact system. 2)You could take off the heating plate when you only need heating part A. |
 Forming Station 1) Forming area: 700 * 800 mm; Male mold : 80mm; Female mold: 120mm. 2) We use this upper-lower model mold when customer chose positive-negative pressure working mode; 3) We use the forming male mold when customer choose positive pressure working mode. |
 No Chain Feeding 1) The traction part without chain, it depends on cylinder clamping device avoiding the waste of material caused by the traditional chain feeding, and improve the utilization of material. 2)The chain-free clamping structure keeps edge material waste within 7.5-12 mm, and lower edge material waste effectively. |
 Cutting Station 1) Cutting power of 70 Ton; 2)The die-cutting station supports both wooden dies and aluminum dies. 3)The equipment is equipped with infrared safety protection to prevent operator errors and avoid potential safety hazards. |

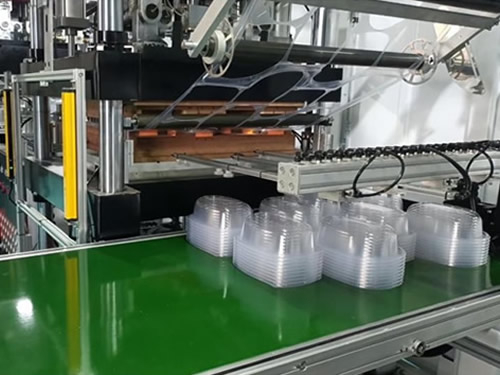

 Stacking Station 1) In-mold gripping to prevent hanging points and burrs on product edges. 2) Full servo-controlled X/Y axis pick-and-place functionality. 3) The HMI system enables operators to set the number of stacking layers, easing later packaging processes. |

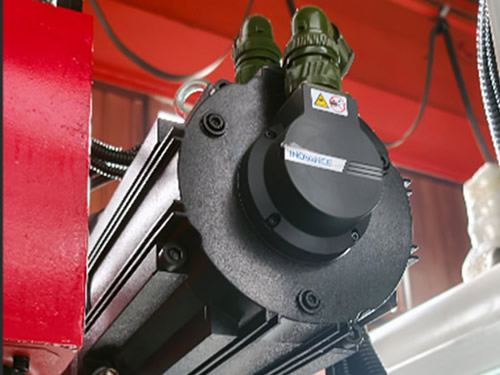

 Full servo motor control 1) All operations including loading, forming,stretching, die-cutting, and stacking are precisely controlled by servo motors. 2) Full servo control reduces power consumption,minimizes noise, and enhances equipment stability. |
 Machine service 1) The machine manufacturing time around 60 days per set; 2) Shipment with 1 set 40 HQ container; 3) Machine with 1 years warranty; |
