Application:
This machine is suitable for BOPS, PS, APET, PVC, PLA and other thermoplastic materials. It can form a variety of lids, boxes, dishes, trays, such as lunch box lids, sushi lids, paper bowl lids, aluminum foil box lids, mooncake trays, pastry trays, supermarket trays,oral liquid trays, and medicine injection trays.
Brief Introduction:
This series of machines is plastic thermoforming equipment with an integrated mechanical, electrical and pneumatic design, PLC control system and touch screen operation. It completes sheet feeding-heating-molding-cutting-stacking process in one continuous cycle.
Features:
1. Servo driven platen for smooth and energy efficient movement
2. Memory storage system
3. Optional working modes
4. Intelligent diagnostic analysis
5. Quick mould air baffle change
6. In-mould cutting ensuring consistent and accurate trim
7. Low energy consumption, high utilization
8. Robot with 180 degree rotation and dislocation palletizing
Technical Data

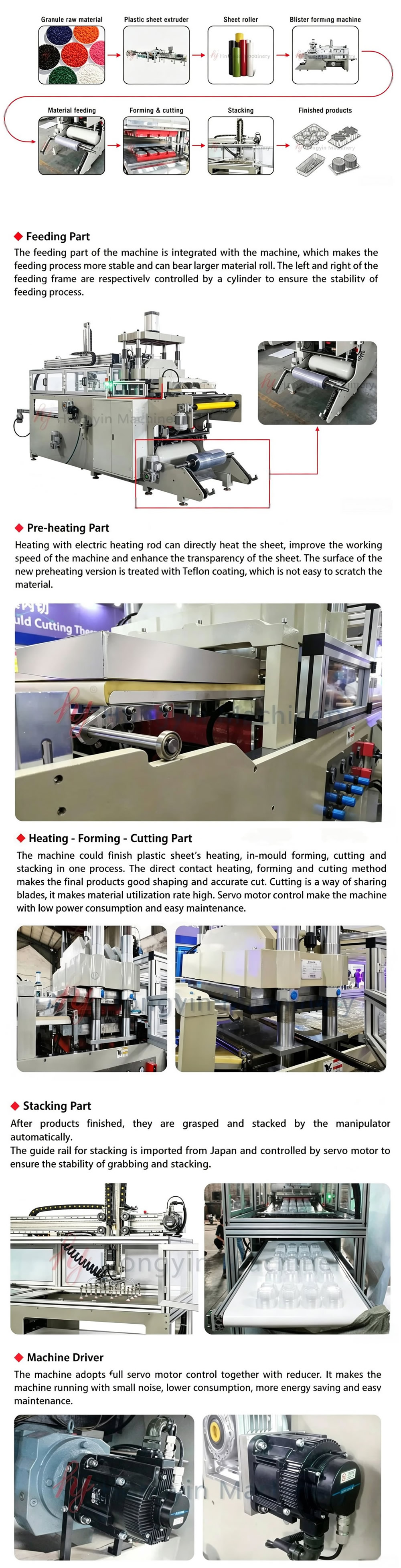

General Process
Packaging and Shipping
This machine is suitable for BOPS, PS, APET, PVC, PLA and other thermoplastic materials. It can form a variety of lids, boxes, dishes, trays, such as lunch box lids, sushi lids, paper bowl lids, aluminum foil box lids, mooncake trays, pastry trays, supermarket trays,oral liquid trays, and medicine injection trays.
Brief Introduction:
This series of machines is plastic thermoforming equipment with an integrated mechanical, electrical and pneumatic design, PLC control system and touch screen operation. It completes sheet feeding-heating-molding-cutting-stacking process in one continuous cycle.
Features:
1. Servo driven platen for smooth and energy efficient movement
2. Memory storage system
3. Optional working modes
4. Intelligent diagnostic analysis
5. Quick mould air baffle change
6. In-mould cutting ensuring consistent and accurate trim
7. Low energy consumption, high utilization
8. Robot with 180 degree rotation and dislocation palletizing
Technical Data
| Model | HY-6378 |
Max. Forming Area |
630x780mm |
| Max. Forming Depth | 125mm |
| Material Thickness Range | 0.12-1.0mm |
| Knife Length | APET:8000mm/OPS:11000mm |
| Air Pressure | 0.7Mpa |
| Air Consumption | 2000 Litres/min |
| Water Consumption | 8 Litres/min |
| Power Consumption | 15kw/h(Approximate) |
| Total Heating Power | 41 kw |
| Total Motor Power | 9 kw |
| Power Supply | AC 380V±15V 50/60HZ |
| Production Speed | 600-1200 Cycles/hr |
| Max. Material Roll Diameter | 800mm |
| Max. Sheet Width | 810mm |
| Machine Dimensions | 5600x1750x2500mm |
| Machine Weight | 5200kg |
General Process
Packaging and Shipping
Related
HY-70/95 Full-auto Contact-heat Plastic Thermoforming Machine
HY-70/80 Full-auto Contact-heat Plastic Thermoforming Machine
HY-54/76 Full-auto Contact-heat Plastic Thermoforming Machine
HY-51/62 Full-auto Contact-heat Plastic Thermoforming Machine
FAQ
Q1: What's your delivery date?<br>
A: Usually finish the production within 30 days after your 30% advanced payment, actually need to check according to our stock & production plan.
Q2: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy. We accept L/C at sight.
Q3: How many days will you finish installing?
A: Normally, we will finish installation and training within 30-40 days.
Q4: How long is your machine's warranty period?
A: All our machines have one year guarantee, starting from the finished installation.
Q5: How could we do after one year warranty period?
A: We also can do service for you, if require overseas service, you need pay salary to our technician 150 USD/day.
Q6: How could we do if the parts are broken within the warranty?
A: We would express the free replacement parts during the warranty date.
Q2: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy. We accept L/C at sight.
Q3: How many days will you finish installing?
A: Normally, we will finish installation and training within 30-40 days.
Q4: How long is your machine's warranty period?
A: All our machines have one year guarantee, starting from the finished installation.
Q5: How could we do after one year warranty period?
A: We also can do service for you, if require overseas service, you need pay salary to our technician 150 USD/day.
Q6: How could we do if the parts are broken within the warranty?
A: We would express the free replacement parts during the warranty date.
